Presentation Timer w/Large LED Display TMR223B8

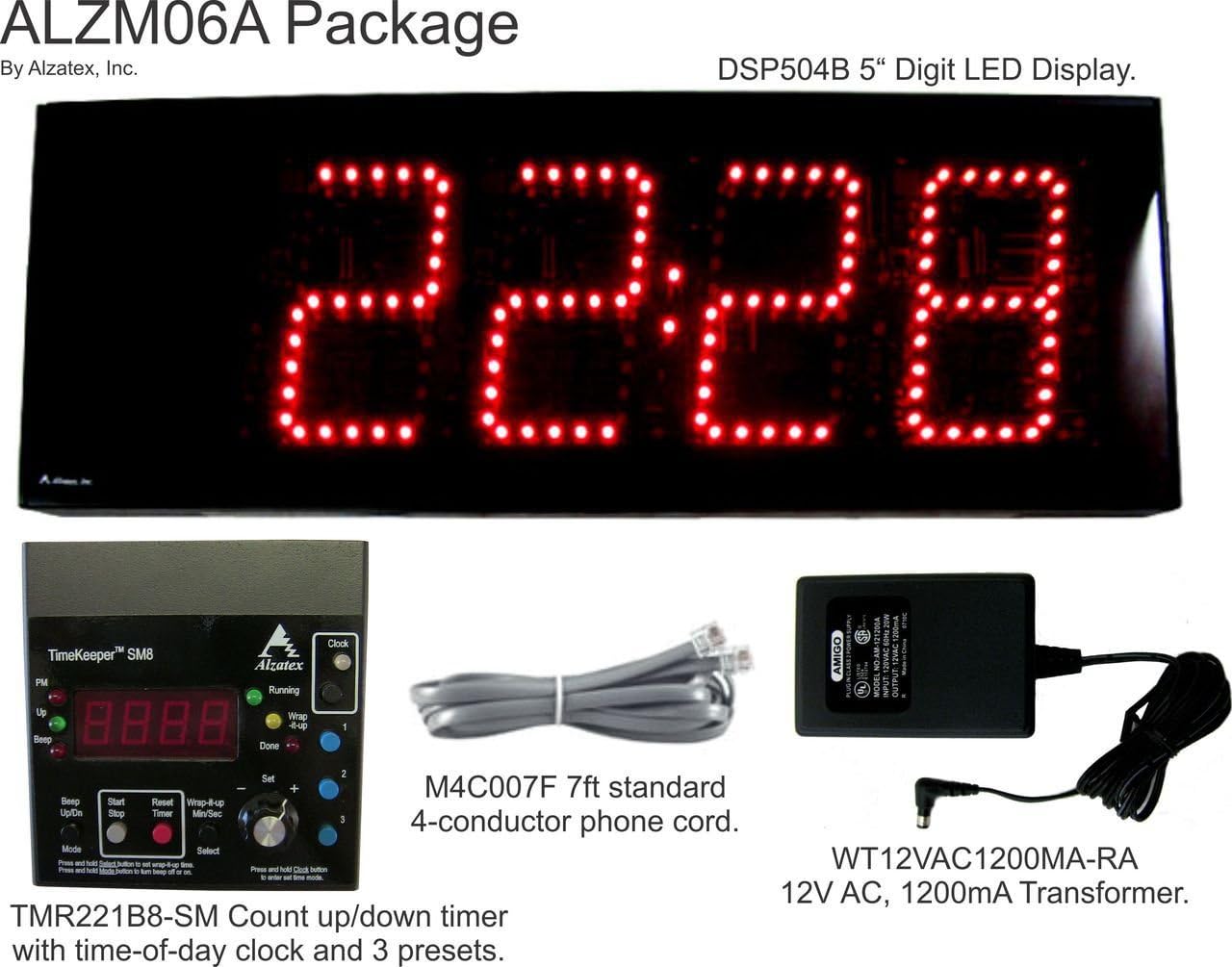

This presentation TimeKeeper system includes a TMR223B8 Count Up/Down Timer with three programmable presets, and a DSP504B Large Four-digit LED wall Display visible (up to 100ft) to the speaker and the audience. Two Serial data RJ11 connectors for accessories. One RS422 output with RJ45 connector for accessories. Ground closure 600mA output for optional beeper. (not included). Timer Construction: Metal enclosure, black powder coated finish. Display Construction: Metal enclosure, black powder coated finish. Power requirements: 10-18 VAC or 12-24 VDC power. Current consumption: 500ma. TMR223B8_SM Dimensions: 4.5" x 4.5" x 1.25". DSP504B Dimensions: 21.5" x 8" x 2.5". Included: (1) TMR223B8_SM Count up/down timer. (1) DSP504B Large LED display. (1) WT12VAC1200MA_RA 12V AC, 1200mA transformer. (1) M8BK025F 25ft, Cat-5, 8-conductor cable. (1) RC Reference guide. (1) WD Wiring diagram.

• Count up elapsed timer settable to Hour:Min or Min:Sec. Count down time remaining timer settable to Hour:Min or Min:Sec. Easy to use. Press Reset. Turn knob to set the desired time. Press Start.
• Subsequent timing cycles. Green, Yellow and Red warning indicators have preprogrammed settings to match Toastmasters requirements, or may be programmed by user.
• Beeper provides audible sound when timer reaches zero. Button to turn beeper on/off. Built in Time of day clock displays 12 or 24 hour mode.
• Connect two or more TimeKeepers together. One becomes the timer, and the others become remote displays. Four-digit LED seven-segment Display with 0.56" high digits.
• Made of ruggedized aluminum construction. Standard mounting is 2 key hole slots spaced 16inch apart for wall mounting, screws where D-Rings can be attached, and holes for attaching handles.
